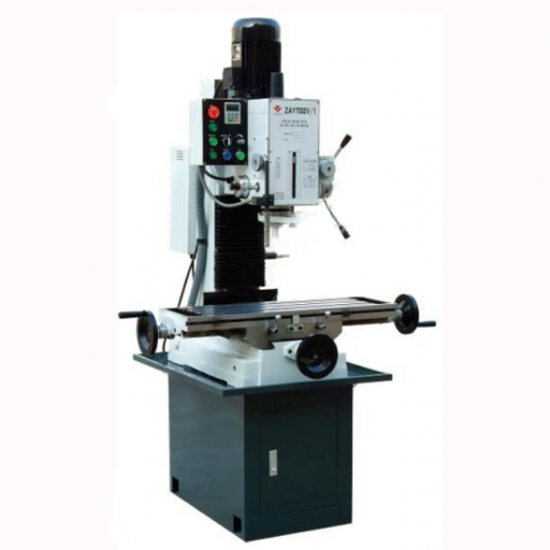

ZAY7020/ZAY7032/ZAY7040/ZAY7045
Request a Quote
Out of Stock
Main Features:
1.QuietB section belt drive system
2.Milling head rotates 360º on column
3.Extralarge 820 x 240mm ground work table with T-slots
4.Adjustable leadscrew nuts eliminating back lash on both axis
5.Fine feed hand wheel operating quill feed
6.Forward and reverse on/off switch
7.3MTspindle with 75mm diameter quill
8.Adjustabletable and drill length stops
9.Rackand pinion wind-up head
10.Rearslide-way cover and slide clamps on all axis
11.Spindle lock for quill
12.Table lock on both axis
13.Metricdial graduations @ 0.05mm for X & Y axis
14.Optional power feed fits straight on the table
Nationwide
Delivery
Delivery
Pay via
M-Pesa
M-Pesa
100% Genuine
Products
Products
Genuine & Warranted
Sourced from trusted suppliers with manufacturer-backed warranty.
Fast Nationwide Delivery
Countrywide dispatch with reliable courier partners across Kenya.
Expert Support
Talk to our team on WhatsApp for specs, quotes and bulk orders.
Product Description
| SPECIFICATION | ||||
| Model | ZAY7020 | ZAY7032 | ZAY7040 | ZAY7045 |
| Drilling capacity | 20mm | 32mm | 40mm | 45mm |
| Face milling capacity | 63mm | 63mm | 80mm | 80mm |
| End milling capacity | 20mm | 20mm | 32mm | 32mm |
| Distance from spindle nose to table | 435mm | 450mm | 450mm | 450mm |
| Min.distance from spindle axis to column | 181.5mm | 203.5mm | 203.5mm | 203.5mm |
| Spindle travel | 85mm | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Step of spindle speed | 12 | 12 | 12 | 12 |
| Range of spindle speed 50Hz | 100-2200 r.p.m | 80-2080 r.p.m | 80-2080 r.p.m | 80-2080 r.p.m |
| 60Hz | 120-2640 r.p.m | 100-2500 r.p.m | 100-2500 r.p.m | 100-2500 r.p.m |
| Swivel angleof headstock (horizontally) | 360° | 360° | 360° | 360° |
| Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm |
| Left and right travel of table | 290mm | 500mm | 500mm | 500mm |
| Motor Power | 0.55KW | 0.75KW | 1.1KW | 1.5KW |
| Voltage/frequency | As customer's requirement | |||
| Net weight/gross weight | 130kg/190kg | 280kg/330kg | 283kg/333kg | 285kg/335kg |
| Packing size | 620×750×1000mm | 1020×820×1160mm | 1020×820×1160mm | 1020×820×1160mm |
| Loading amount | 48pcs/20＇container | 28pcs/20＇container | 28pcs/20＇container | 28pcs/20＇container |
